Tidyer

1.1 Goals

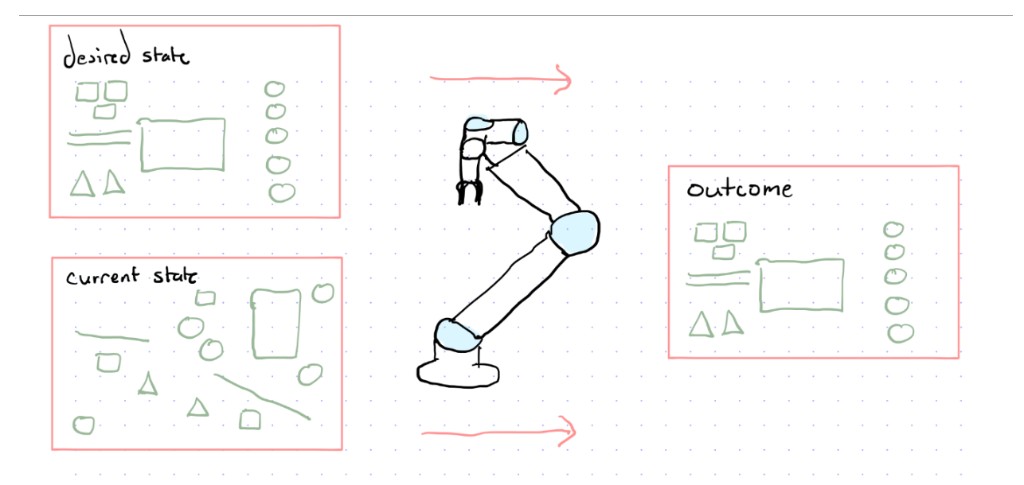

Our primary goal is to foreground the difficulty of reliable manipulation: What is a practical way to pick up an object and place it where it belongs? How can we instill recovery behavior into our closed-loop execution? Using color and shape cues together with depth-backed 3D estimates, we built a strategy that repeatedly proposes feasible pick and place poses for a parallel-jaw gripper on a UR7e. Furthermore, actively capturing current-state images after each manipulation (pick + place) naturally enables recovery behaviors that ensure robustness against both human- and robot-induced mistakes in grasping or placing. Our second goal is to design a traditional perception + MoveIt pipeline capable of reasoning about scene reconstruction without relying on heavy-weight foundation models for high- and low-level planning.

1.2 Motivation and justification

Much of robotics has become increasingly data driven. Although this approach has demonstrated exceptional promise, it also introduces challenges such as extensive data collection requirements, difficulty generalizing reliably to real-world scenes, and limited understanding of task completion status. Therefore, we sought to build a perception and manipulation pipeline that does not rely on training data while still remaining capable of operating in messy environments.

Tidying a desk is a relatable instance of reference-conditioned rearrangement: the goal configuration is explicit through a reference image, success is visually verifiable, and errors compound quickly when depth estimation or calibration is inaccurate. The task also naturally requires geometric perception, discrete sequencing (which block moves first when goals overlap), and industrial-grade motion planning on real hardware shared across the class.

Related work on language-conditioned block assembly, such as Blox-Net, which generates feasible assemblies from prompts and closes the loop with simulation and a physical robot, motivated us to think about constraint-aware layouts, even though our system conditions on an image rather than free text ( Goldberg et al., arXiv:2409.17126 ).

1.3 From proposal to final system

Our initial write-up proposed a VLM-as-judge technique to evaluate object placement. We intended for the model to analyze frame-by-frame differences, utilize dense correspondence, and optimize for in-plane rotations during placement.

After TA feedback favoring minimal models and inspectable geometry, our stack instead centered on OpenCV HSV segmentation, RealSense intrinsics + depth, RANSAC plane fitting for block-top height, PCA-based grasp yaw in base_link, and MoveIt IK + RRTConnect for execution (tidyer/perception/rgbd_perception.py, tidyer/planning/ik.py, tidyer/planning/main.py).

This pivot traded the broad object generality commonly found in cluttered desk environments for a more interpretable and reliable perception stack centered on colored blocks. Although this may appear limiting, we view the project as a proof of concept demonstrating how carefully designed geometric pipelines can avoid many of the robustness and data challenges associated with learning-based systems.

Furthermore, due to the modular nature of our framework, a VLM could later be reattached to handle greater object diversity while preserving the same planning and execution infrastructure.

1.4 Sensing, Planning, and Actuation (How the Pieces Fit)

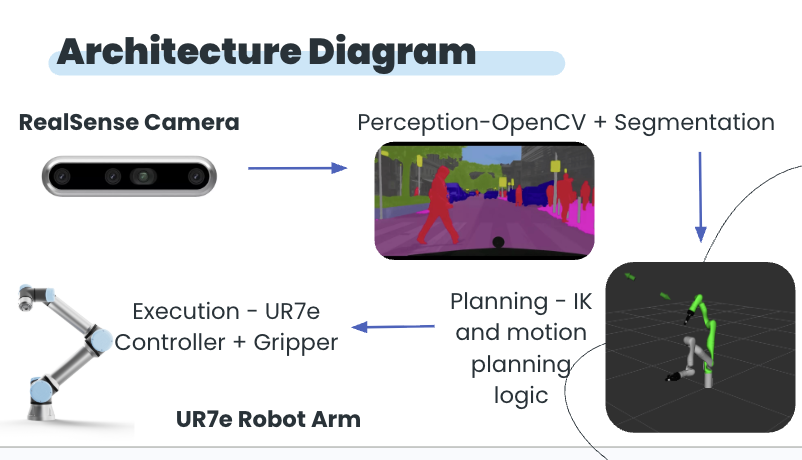

Sensing: An Intel RealSense streams aligned RGB-D data; the perception node segments stable regions above a captured desk plane, lifts 2D detections into 3D in the camera frame, and transforms points into base_link using tf2_ros.

Planning: The planner matches reference detections to current detections using color labels and classified shapes, flags motion beyond pixel and yaw tolerances, resolves place-footprint overlap by temporarily moving blocking objects to a computed free desk location when stacking mode is disabled, and publishes a two-pose PoseArray on /pick_place_pair. Stacking mode bypasses collision-overlap checks since intentional object overlap is required.

Actuation: The pick-and-place node chains IK solutions with seeded continuity, sends time-parameterized trajectories to the UR controller, toggles a binary gripper service, and returns the arm to a known observation configuration before the next capture cycle.

3.1 Hardware

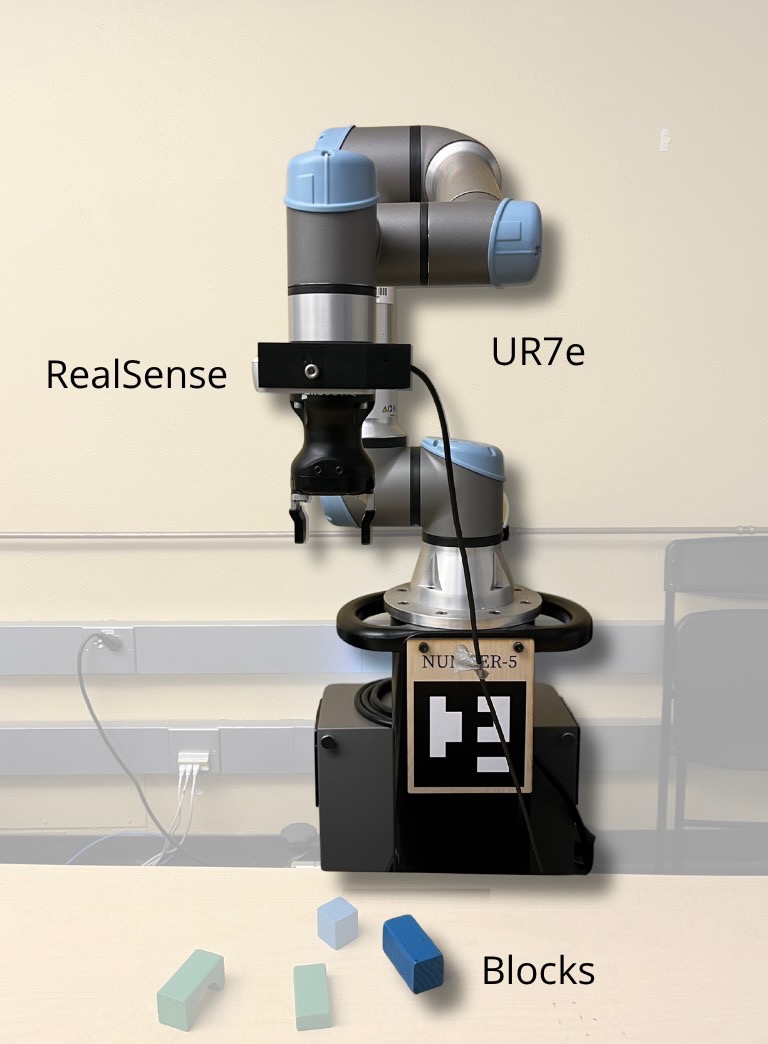

Bill of materials (lab stack): one UR7e with parallel gripper, one Intel RealSense D435-class RGB-D camera, assorted standardized colored blocks for repeatable tests, and the department robot desk. Aligned depth is required to lift segmented regions into 3D for grasp and placement without a separate structured-light rig.

3.2 Overarching Pipeline

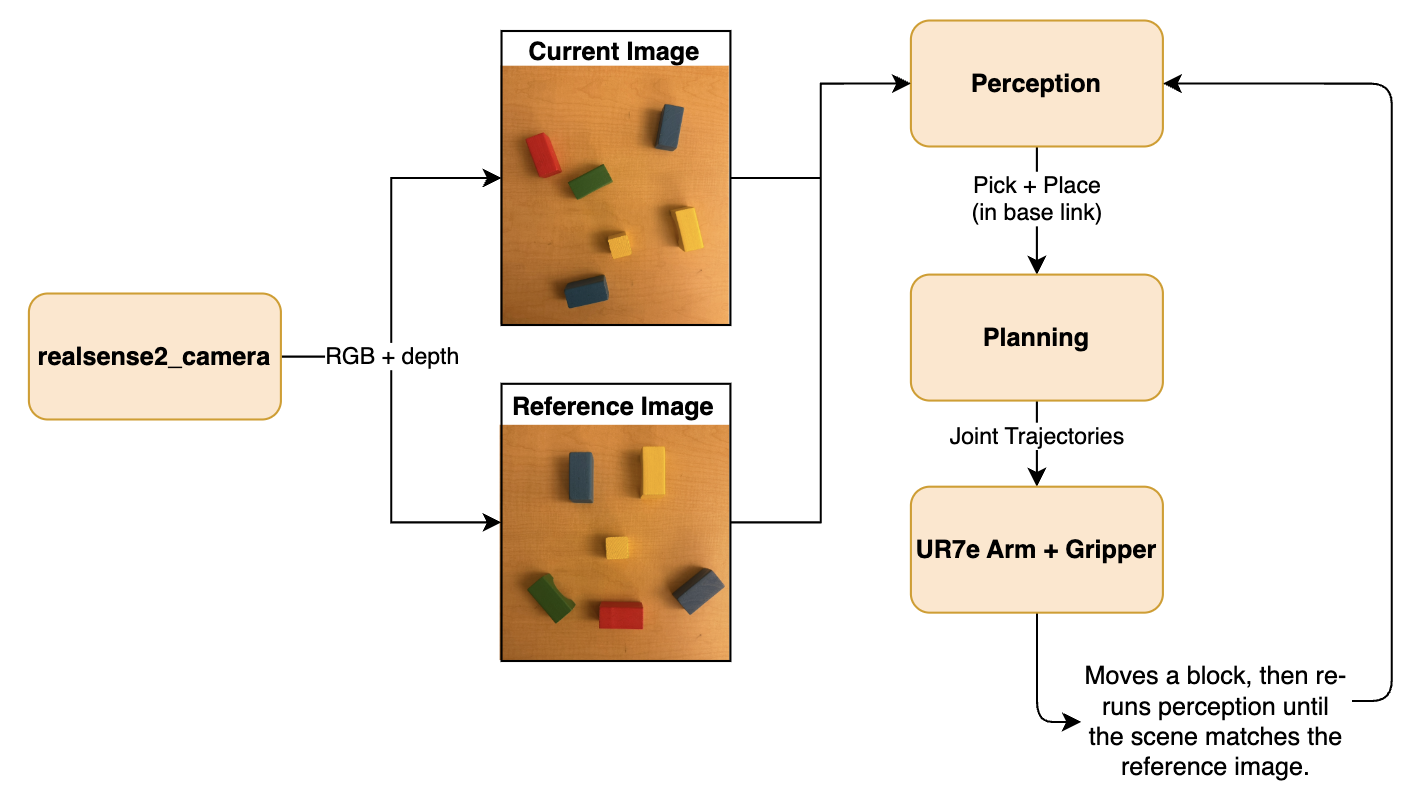

1. The RealSense2 camera captures both the current workspace image and the reference image. It also provides depth data and camera intrinsics, which are sent to the perception node.

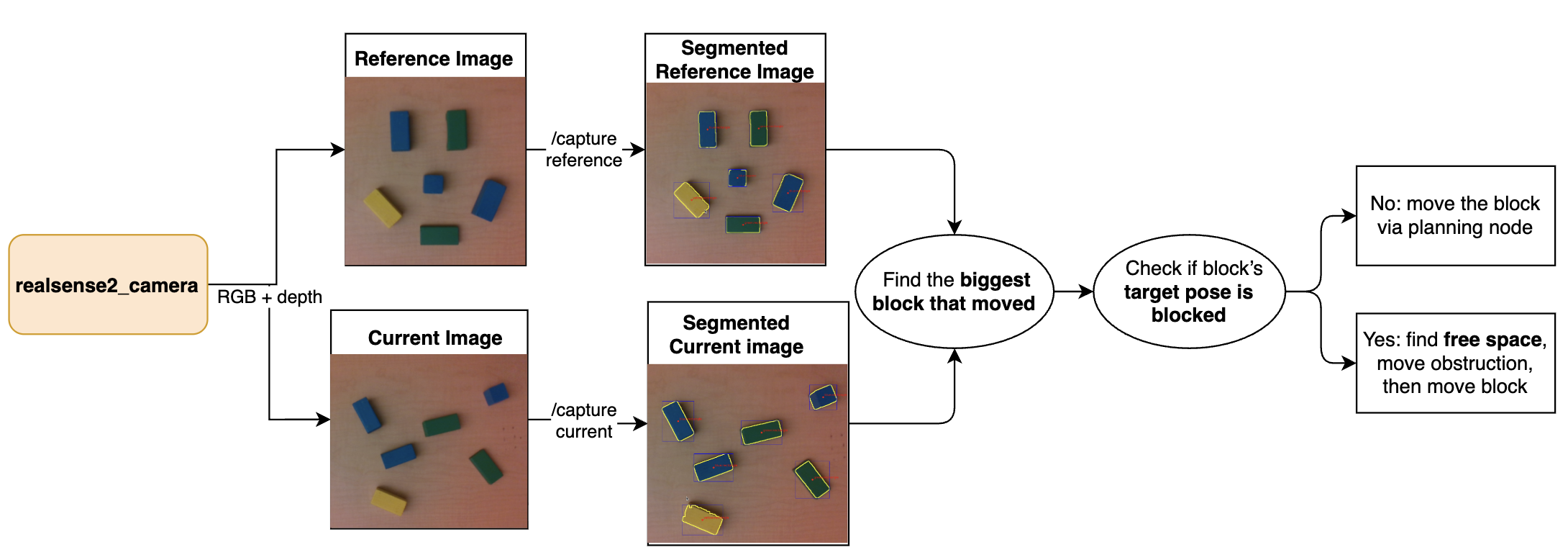

2. The perception node segments the images, compares the current scene to the reference scene, identifies blocks that need to be moved, computes the pick-and-place poses, and transforms points from the camera frame into the base_link frame using TF.
3. The planning node takes the pick-and-place poses, builds motion waypoints, solves inverse kinematics (IK), generates a MoveIt plan, executes the motion, and toggles the gripper.

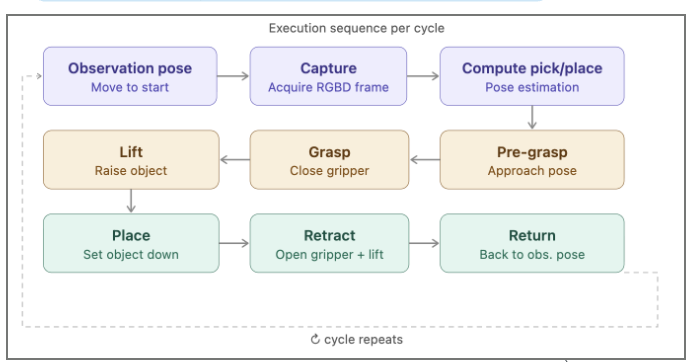

4. The UR7e arm executes the joint trajectories to move one block at a time. After each move, the system loops back to perception, captures an updated scene, and repeats until the current arrangement matches the reference image.

Declared runtime dependencies in package.xml include rclpy, sensor_msgs, geometry_msgs, cv_bridge, moveit_msgs, tf2_ros, realsense2_camera, ur_moveit_config, and the launch stack.

3.3 Perception (rgbd_perception.py)

Input: Current RGB-D image and reference RGB-D image

Output: Pick and place poses for each moved block

• Subscribe to RGB, aligned depth, and CameraInfo; cache camera intrinsics fx, fy, cx, and cy.
• Capture an image of the empty desk to estimate the desk plane depth. This depth is later used to segment blocks from the desk by masking pixels whose depth lies slightly above the desk plane.
• On /capture_reference, segment all objects in the reference frame and store the detections along with the RGB snapshot.
• For each detected block, store its color, shape, centroid, contour area, 3D position in the camera frame, yaw, and contour mask.
• On /capture_current, segment all objects in the live frame, match them to reference objects by color and shape, and mark a block as “moved” if:
  • the centroid distance exceeds position_tolerance_px default: 50 px, or
  • the yaw difference exceeds yaw_tolerance_rad ≈10° for non-symmetric shapes.
    • We estimate grasp yaw using 3D PCA on the block's top surface. The contour mask is eroded to reduce edge noise, pixels within 5 mm of the top depth percentile are projected into 3D camera coordinates, and PCA is applied to recover the dominant axis of the block before transforming the orientation into base_link. This improves grasp robustness across different block shapes and sizes.
    • We use RANSAC plane fitting on the contour to fit the dominant plane corresponding to the block's top surface, reject outliers and noisy side pixels, and obtain a more robust depth estimate for the block top.

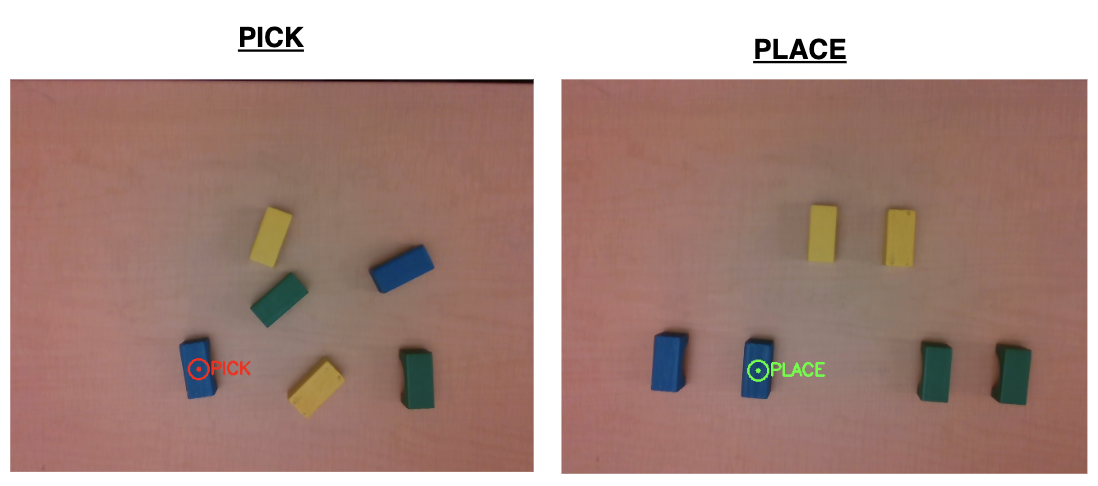

• Swap conflict resolution: Before publishing the pose, the system performs a collision check by determining whether any current detection's contour intersects the reference placement contour, dilated by overlap_margin_px = 5 to absorb segmentation and placement jitter. If stacking mode is disabled and an overlap is detected:

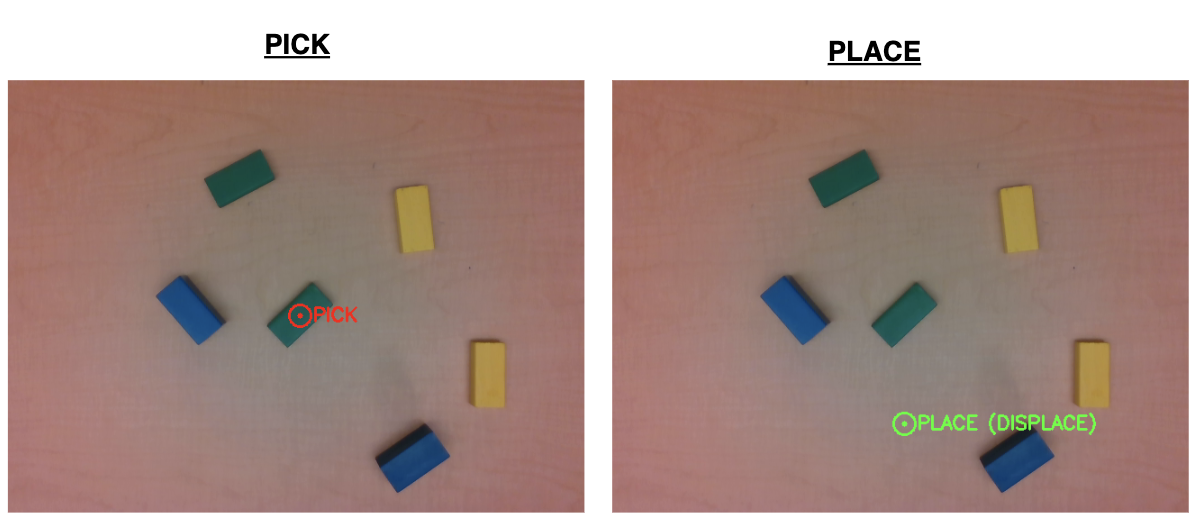

  • The system selects the largest occupier and temporarily displaces it to a free desk location before executing the intended tidy action.
  • The free location is computed by constructing a binary mask of valid desk pixels (pixels near the desk depth and not occupied by any current contour), running a distance transform over the mask, and selecting a qualifying pixel whose distance value can fit the block's bounding radius. Among all qualifying pixels, the system chooses the one closest to the block's current centroid to minimize displacement.
• Publish the final pick and place poses in base_link on /pick_place_pair.
• Save debug images and JSON metadata under ~/final_proj/pair/ for post-run inspection.

3.4 Execution pipeline (main.py, ik.py)

The executor subscribes to /pick_place_pair, lifts waypoints for approach and finger insertion offsets, solves IK through MoveIt's /compute_ik, plans between joint goals with RRTConnectkConfigDefault via /plan_kinematic_path, sends trajectories to /scaled_joint_trajectory_controller/follow_joint_trajectory, and toggles /toggle_gripper at the appropriate queue points. After a cycle it returns to DEFAULT_JOINTS and can optionally trigger another /capture_current when the auto-capture chain is armed, closing the outer tidy loop without a VLM in the middle.

3.5 Self-Correction (rgbd_perception.py)

A useful emergent property of the pipeline is closed-loop self-correction, which arises from two deliberately conservative design choices: the perception system only emits a single (pick, place) pair per evaluation, and the execution loop re-triggers /capture_current after each completed arm cycle instead of pre-planning the entire rearrangement. Because every iteration begins from a fresh RGB-D snapshot, _find_moved_objects always compares the live scene against the reference image rather than against an internally maintained belief state. As a result, any disturbance that occurs mid-task is automatically incorporated into the next decision.

If the gripper nudges a neighboring block, a placed object slips, a human moves an item, or a stack collapses, the system does not need explicit recovery logic. On the next evaluation, the segmenter observes the updated scene, the matching stage identifies blocks whose centroid or orientation differs from the reference beyond the configured tolerances: 50 px and ≈10°. The largest moved object then becomes the next manipulation target.

The terminal condition, Scene aligned, is purely a function of the current frame matching the reference detections, so execution continues until the physical world matches the goal configuration rather than until a precomputed plan terminates.

Restricting the system to a single manipulation per cycle also limits error propagation. If a pick or placement fails, only one block becomes incorrect, and the next iteration naturally re-detects and repairs the mistake instead of allowing errors to compound across a long open-loop sequence.

The collision-handling logic in _occupiers_at_place_contour extends the same philosophy: if a target placement is occupied, the system temporarily abandons the original move, displaces the blocking object to a valid free-space location, and relies on the next perception cycle to rediscover and complete the original goal once the obstruction is removed.

The result is a perception-driven manipulation loop with no long-horizon plan to invalidate. Every action is recomputed from the current scene, making the system naturally robust to the small, unpredictable disturbances common in real-world manipulation.

3.6 Operator workflow

Terminal A (interactive):
  ros2 run tidyer tidyer_keyboard

Terminal B:
  ros2 launch tidyer tidyer_bringup.launch.py

Robot prep (lab scripts):
  ros2 run ur7e_utils enable_comms
  ros2 run ur7e_utils tuck
  ros2 run ur7e_utils reset_state
  ros2 run ur7e_utils freedrive   # when teaching or recovering

Desk workflow (keyboard):
  Clear desk → d  (/capture_desk_depth, median plane)
             → r  (/capture_reference, goal layout)
             → c  (/arm_auto_capture_chain + /capture_current until aligned)
             → s  (/toggle_stacking) when building vertical structures

3.7 Repository layout (selected)

• tidyer/perception/rgbd_perception.py: perception, services, overlap logic, publisher.
• tidyer/planning/main.py: pick and place executor, job queue, auto-capture chain.
• tidyer/planning/ik.py: MoveIt IK and joint-space planning helpers.
• tidyer/planning/static_tf_transform.py: camera extrinsic from wrist.
• tidyer/planning/keyboard_trigger.py: operator-facing triggers.
• launch/tidyer_bringup.launch.py: integrated bring-up.

5.1 Outcomes vs. Criteria

The delivered system satisfies the core project criteria: reference capture, live scene differencing, overlap-aware sequencing, MoveIt-backed execution, and optional stacking support. Remaining challenges primarily concern robust real-world execution: lighting variation, reflective surfaces, and aggressive motion speeds can still lead to protective stops or IK failures, consistent with the manipulation difficulties identified in our proposal.

5.2 Challenges Encountered

• TF connectivity: when base_link and camera_color_optical_frame were not connected within the same transform tree, perception failed immediately with explicit TF errors. Furthermore, we had to carefully account for differences between camera_color_optical_frame and camera_depth_optical_frame when integrating RealSense depth data and transforms.
• HSV sensitivity: segmentation required iterative tuning across changing lighting conditions. Exposing HSV bounds as JSON parameters allowed rapid experimentation without rebuilding the pipeline.
• Depth and centroid noise: noisy depth measurements motivated RANSAC top-plane fitting, desk-band masking, and Z-offset safety margins (pick_z_offset_m, place_z_offset_m) to reduce table collisions during pick and place execution.
• Observation consistency: returning the arm to a repeatable observation pose between captures proved essential for stable image differencing and reliable closed-loop execution.

5.3 Future Work

Natural extensions include stronger segmentation methods such as SAM-style models with careful latency budgeting, richer collision reasoning beyond single-step overlap masks, learned or search-based grasp orientation for more heterogeneous objects, and optional language interfaces layered above the current reference-image contract.

These directions preserve the modular separation where most debugging effort was concentrated: the boundary between perception (“what moved?”) and motion generation (“how should the robot move?”).
